Dimmer Back to list

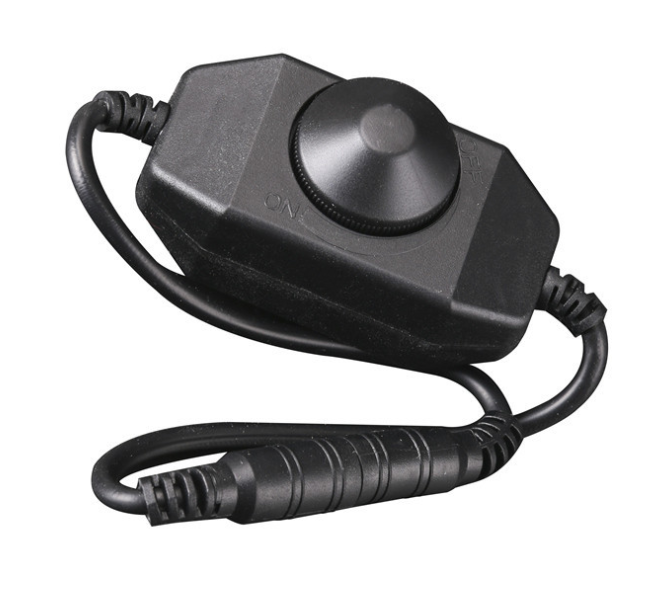

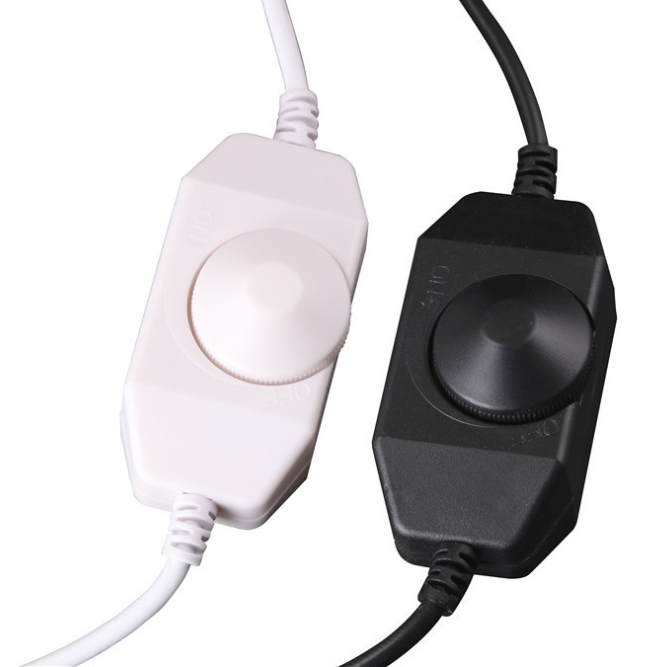

Dimmer

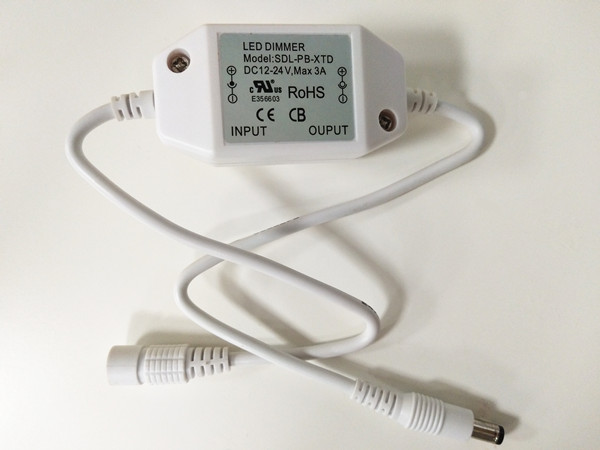

Model：SDL-PB-XTD
Specification
● Working Temperature：-20-60℃
● Supply Voltage：DC12V, 24V.
● Output：1 route
● Connection Mode：Both side Anode
● Dimension：L61mm*W33mm*H32mm
● Packing：L90mm*W60mm*H40mm
● Net Weight：36g
● Gross Weight：50g
● Static Power：<1W
● Output Current：<4A
● Output Power：12V<48W, 24V<96W
● Certification: CE,CB,UL,cUL
Description
Single route line dimmer is a no class limitation controller. Using knob control mode, the user can adjust
the light to the appropriate brightness according to actual needs.
